Home Factory Direct Heater Parts Unit Heater Parts

Re-Verber-Ray Unit Heater Parts

Our line of separated combustion unit heaters features a compact, aesthetically pleasing construction. And our gas-fired unit heaters offer an option where infrared heating is not practical due to ceiling heights, clearances to combustibles or building use



Model Number BTU Input Cabinet Number

Version

Documentation
1 UH-30 30,000 1 11/15 to Present IOPM
2 UH-45 45,000 1 11/15 to Present IOPM
3 UH-60 60,000 2 11/15 to Present IOPM
4 UH-75 75,000 2 11/15 to Present IOPM
5 FA-100 100,000 3 11/15 to Present IOPM
6 FA-125 125,000 3 11/15 to Present IOPM
7 FA-150 150,000 4 11/15 to Present IOPM
8 FA-175 175,000 4 11/15 to Present IOPM
9 FA-200 200,000 4 11/15 to Present IOPM
10 FA-225 225,000 5 11/15 to Present IOPM
11 FA-250 250,000 5 11/15 to Present IOPM
12 UH-30 30,000 1 09/12 to 10/15 IOPM*
13 UH-45 45,000 1 09/12 to 10/15 IOPM*
14 UH-60 60,000 2 09/12 to 10/15 IOPM*
15 UH-75 75,000 2 09/12 to 10/15 IOPM*
16 FA-100 100,000 3 09/12 to 10/15 IOPM*
17 FA-125 125,000 3 09/12 to 10/15 IOPM*
18 FA-150 150,000 4 09/12 to 10/15 IOPM*
19 FA-175 175,000 4 09/12 to 10/15 IOPM*
20 FA-200 200,000 4 09/12 to 10/15 IOPM*
21 FA-225 225,000 5 09/12 to 10/15 IOPM*
22 FA-250 250,000 5 09/12 to 10/15 IOPM*
  • Discontinued
    heaters
  • Discontinued version
    of current series
  • Current version
    of current series

*By selecting documentation link(s) above, you acknowledge that it links to an out-of-production installation, operation manual from the time of a particular heater manufacture. Refer to current production product manuals for up-to-date installation requirements.

Categories

Hardware Components Part List

Image Description Price
10-Kit SSKAO
10 Foot Full 4" Stainless Steel Tube Heater Mounting Kit
N/A
UF-114
Service Access Handle
$5.50
UF-115
Burner Sight Glass
$4.00
UF-121
Mounting Rail (Qty. 2)
$7.46
UF-211
#10 x 1" SMS - Point Tip
$0.20
UF-212
#8 x 1/2" SMS - Point Tip
$0.05
UF-213
#10 x 1/2" SMS - Point Tip
$0.05
UF-214
#10-31 Ground Screw
$0.05
UF-215
#2 Phillips Pan Head x 1/2" SMS - Blunt Tip
$0.11
UF-216
1/4" - 20 x 1" Bolt
$0.20
UF-217
5/16" - 18 x 1" Bolt
$0.25
UF-231
1/4" Flat Washer
$0.05
UF-232
1/4" Lock Washer
N/A
UF-233
5/16" Flat Washer
$0.05
UF-234
5/16" Lock Washer
$0.05
UF-235
#10 Flat Washer
$0.05
UF-236
#10 Rubber Washer
$0.05
UF-242
Strain Relief Bushing, Cordgrip
N/A
UF-244
3/4" Gas Pipe Grommet
$1.10
UF-251
Louver Spring
$5.00
UF-261
1/4" - 20 Threaded Nut Insert
$0.40
UF-262
1/4" - 20 Threaded Nut Insert
$0.55
UF-263
#10 - 32 Nyloc Nut
$0.20
Placeholder UF-300
Component Panel
N/A
Placeholder UF-450
Burner Chamber Support Bracket
N/A
Placeholder UF-690
Restrictor Plate (Indicate Size)
N/A
Placeholder UF-705
Burner Chamber Sides
N/A
UF-712
Manifold Pipe, 2 Burner
$41.00
UF-713
Manifold Pipe, 3 Burner
$41.00
UF-714
Manifold Pipe, 4 Burner
$41.00
UF-715
Manifold Pipe, 5 Burner
$41.00
UF-716
Manifold Pipe, 6 Burner
$46.00
UF-717
Manifold Pipe, 7 Burner
$23.00
UF-719
Manifold Pipe, 9 Burner
$125.00
Placeholder UF-722
Burner Mounting Rail, 2 Burner
N/A
Placeholder UF-723
Burner Mounting Rail, 3 Burner
N/A
Placeholder UF-724
Burner Mounting Rail, 4 Burner
N/A
Placeholder UF-725
Burner Mounting Rail, 5 Burner
N/A
Placeholder UF-726
Burner Mounting Rail, 6 Burner
N/A
Placeholder UF-727
Burner Mounting Rail, 7 Burner
N/A
Placeholder UF-729
Burner Mounting Rail, 9 Burner
N/A
Placeholder UF-733
Burner Chamber Body, 3 Burner
N/A
Placeholder UF-734
Burner Chamber Body, 4 Burner
N/A
Placeholder UF-735
Burner Chamber Body, 5 Burner
N/A
Placeholder UF-736
Burner Chamber Body, 6 Burner
N/A
Placeholder UF-739
Burner Chamber Body, 9 Burner
N/A
UF-1101
Back Panel #1
$16.00
UF-1102
Left Side Panel #1
$10.00
UF-1103
Front Panel #1
$7.00
UF-1104
Bottom Panel #1
$19.00
UF-1105
Top Panel #1
$19.00
UF-1106
Service Access Door #1
$10.00
UF-1113
Louver
$3.00
UF-1113A
New Style Louver
N/A
Placeholder UF-1462
Exhaust Collection Chamber, 2 Burner
N/A
Placeholder UF-1463
Exhaust Collection Chamber, 3 Burner
N/A
Placeholder UF-1821
#1 Tube and Vest Panel Assembly (2 Tubes)
$0.00
Placeholder UF-1823
#2 Tube and Vest Panel Assembly (3 Tubes)
N/A
Placeholder UF-2101
Back Panel # 2
$18.00
Placeholder UF-2102
Left Side Panel #2
$13.00
Placeholder UF-2103
Front Panel #2
$9.00
Placeholder UF-2104
Bottom Panel #2
$19.00
Placeholder UF-2105
Top Panel #2
$19.00
Placeholder UF-2106
Service Access Door #2
$14.00
UF-2111

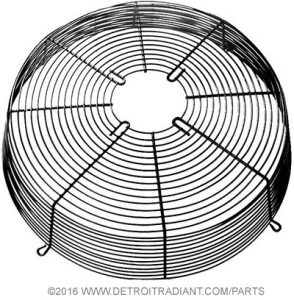

14" Fan Guard, Square Pattern
$61.00
UF-2113
Louver
$2.00
UF-2113A
New Style Louver
N/A
Placeholder UF-2461
Exhaust Collection Chamber, 4 Burner
N/A
Placeholder UF-2462
Exhaust Collection Chamber, 5 Burner
N/A
Placeholder UF-2821
#3 Tube and Vest Panel Assembly (4 Tubes)
N/A
Placeholder UF-2823
#4 Tube and Vest Panel Assembly (5 Tubes)
N/A
Placeholder UF-3101
Back Panel #3
$31.00
Placeholder UF-3102
Right Side Panel #3
$18.00
Placeholder UF-3103
Front Panel #3
$11.00
Placeholder UF-3104
Bottom Panel #3
$29.00
Placeholder UF-3105
Top Panel #3
$29.00
Placeholder UF-3106
Service Access Door #3
$17.00
UF-3111
18" Fan Guard, Rectangle Pattern
$46.00
Placeholder UF-3821
Tube and Vest Panel Assembly (4 Tubes)
N/A
Placeholder UF-3823
Tube and Vest Panel Assembly (5 Tubes)
N/A
Placeholder UF-3831
Left Tube Support (4 Tubes)
N/A
Placeholder UF-3833
Left Tube Support (5 Tubes)
N/A
Placeholder UF-3841
Right Tube Support (4 Tubes)
N/A
Placeholder UF-3843
Right Tube Support (5 Tubes)
N/A
Placeholder UF-4101
Back Panel #4
$38.00
Placeholder UF-4102
Right Side Panel #4
$22.00
Placeholder UF-4103
Front Panel #4
$14.00
Placeholder UF-4104
Bottom Panel #4
$29.00
Placeholder UF-4105
Top Panel #4
$29.00
Placeholder UF-4106
Service Access Door #4
$21.00
UF-4111
18" Fan Guard, Square Pattern
$46.00
Placeholder UF-4461
Exhaust Collection Chamber, 6 Burner
N/A
Placeholder UF-4462
Exhaust Collection Chamber, 7 Burner
$0.00
Placeholder UF-4821
Tube and Vest Panel Assembly (6 Tubes)
N/A
Placeholder UF-4822
Tube and Vest Panel Assembly (7 Tubes)
N/A
Placeholder UF-4831
Left Tube Support (6 Tubes)
N/A
Placeholder UF-4832
Left Tube Support (7 Tubes)
N/A
Placeholder UF-4841
Right Tube Support (6 Tubes)
N/A
Placeholder UF-4842
Right Tube Support (7 Tubes)
N/A
Placeholder UF-5101
Back Panel #5
$42.00
Placeholder UF-5102
Right Side Panel #5
$24.00
Placeholder UF-5103
Front Panel #5
$15.00
Placeholder UF-5104
Bottom Panel #5
$29.00
Placeholder UF-5105
Top Panel #5
$29.00
Placeholder UF-5106
Service Access Door (Upper) #5
$16.00
Placeholder UF-5107
Service Access Door (Lower) #5
$4.00
Placeholder UF-5461
Exhaust Collection Chamber, 9 Burner
N/A
Placeholder UF-5821
Tube and Vest Panel Assembly (9 Tubes)
N/A
Placeholder UF-5831
Left Tube Support (9 Tubes)
N/A
Placeholder UF-5841
Right Tube Support (9 Tubes)
N/A
