Re-Verber-Ray Unit Heater Parts
Our line of separated combustion unit heaters features a compact, aesthetically pleasing construction. And our gas-fired unit heaters offer an option where infrared heating is not practical due to ceiling heights, clearances to combustibles or building use
| Model Number | BTU Input | Cabinet Number |
Version |
Documentation | ||
|---|---|---|---|---|---|---|
| 1 | UH-30 | 30,000 | 1 | 11/14 to Present | IOPM | |
| 2 | UH-45 | 45,000 | 1 | 11/14 to Present | IOPM | |
| 3 | UH-60 | 60,000 | 2 | 11/14 to Present | IOPM | |
| 4 | UH-75 | 75,000 | 2 | 11/14 to Present | IOPM | |
| 5 | FA-100 | 100,000 | 3 | 11/14 to Present | IOPM | |
| 6 | FA-125 | 125,000 | 3 | 11/14 to Present | IOPM | |
| 7 | FA-150 | 150,000 | 4 | 11/14 to Present | IOPM | |
| 8 | FA-175 | 175,000 | 4 | 11/14 to Present | IOPM | |
| 9 | FA-200 | 200,000 | 4 | 11/14 to Present | IOPM | |
| 10 | FA-225 | 225,000 | 5 | 11/14 to Present | IOPM | |
| 11 | FA-250 | 250,000 | 5 | 11/14 to Present | IOPM | |
| 12 | UH-30 | 30,000 | 1 | 09/12 to 10/14 | IOPM* | |
| 13 | UH-45 | 45,000 | 1 | 09/12 to 10/14 | IOPM* | |
| 14 | UH-60 | 60,000 | 2 | 09/12 to 10/14 | IOPM* | |
| 15 | UH-75 | 75,000 | 2 | 09/12 to 10/14 | IOPM* | |
| 16 | FA-100 | 100,000 | 3 | 09/12 to 10/14 | IOPM* | |
| 17 | FA-125 | 125,000 | 3 | 09/12 to 10/14 | IOPM* | |
| 18 | FA-150 | 150,000 | 4 | 09/12 to 10/14 | IOPM* | |
| 19 | FA-175 | 175,000 | 4 | 09/12 to 10/14 | IOPM* | |
| 20 | FA-200 | 200,000 | 4 | 09/12 to 10/14 | IOPM* | |
| 21 | FA-225 | 225,000 | 5 | 09/12 to 10/14 | IOPM* | |
| 22 | FA-250 | 250,000 | 5 | 09/12 to 10/14 | IOPM* | |
- Discontinued
heaters - Discontinued version
of current series - Current version
of current series
*By selecting documentation link(s) above, you acknowledge that it links to an out-of-production installation, operation manual from the time of a particular heater manufacture. Refer to current production product manuals for up-to-date installation requirements.
Electrical Components Part List
| Image | Description | Price |
|---|---|---|
 |
UF-271 Pressure Switch Bracket |
N/A |
 |
UF-282 Limit Switch Bracket |
N/A |
 |
UF-303 3 Amp ATO Fuse |
N/A |
 |
UF-326 40VA Transformer, 24/120V |
$45.00 |
 |
UF-327 Indicator Light, 24VAC |
$15.00 |
 |
UF-329 Terminal Strip |
$3.00 |
 |
UF-422 Limit Switch, Flame Rollout |
$23.50 |
 |
UF-425 Limit Switch, Tube Temperature |
$16.00 |
 |

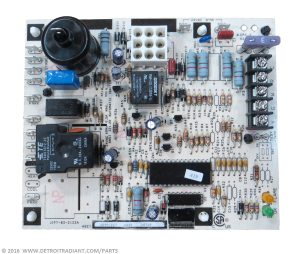

UF-553 Ignition Control Circuit Board |
$180.00 |
 |
UF-554 Wire Harness |
N/A |
 |

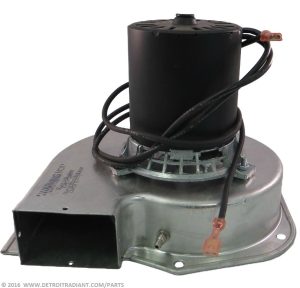

UF-601 Inducer Motor Assembly, Small |
$330.00 |
 |
UF-603 Inducer Motor Assembly, Large |
$400.00 |
 |
UF-640 Pressure Switch, .65" WC |
$42.00 |
 |
UF-641 Pressure Switch, 1.30" WC |
$42.00 |
 |
UF-642 Pressure Switch, 1.55" WC |
$42.00 |
 |
UF-643 Pressure Switch, 1.70" WC |
$42.00 |
 |
UF-1111 1" Fan Guard, Square Pattern |
$17.00 |
 |
UF-1112 10" Axial Fan Blade, 3/8" Hub |
N/A |
 |
UF-1150 Axial Fan Motor, 1/15 HP, 1550 RPM |
$145.00 |
 |
UF-2112 14" Axial Fan Blade, 3/8" Hub |
$32.00 |
 |
UF-2150 Axial Fan Motor, 1/12 HP, 1625 RPM |
$150.00 |
 |
UF-3112 18" Axial Fan Blade, 1/2" Hub |
$32.00 |
 |
UF-3150 Axial Fan Motor, 1/8 HP, 1075 RPM |
$160.00 |
 |
UF-4112 22" Axial Fan Blade, 1/2" Hub |
$69.00 |
 |
UF-4150 Axial Fan Motor, 1/6 HP, 1625 RPM |
$175.00 |
 |
UF-5111 22" Fan Guard, Rectangle Pattern |
$98.00 |
 |
UF-5150 Axial Fan Motor, 1/3 HP, 1075 RPM |
$200.00 |
