Re-Verber-Ray Tube Heater Parts

Great Lakes Radiant Products Company offers the most extensive line of low-intensity infrared radiant tube heaters available. From our award-winning, engineered vacuum systems to our patented, two-stage line of heaters, you’ll find a product that ideally suits your needs. Re-Verber-Ray® low-intensity heaters are a little- to no-maintenance, cost-effective and energy-efficient solution for heating a wide variety of areas.



Series MBH

Version

Documentation
1 DTH 40-100 11/86 & Prior IOPM*
2 DTHS 40-100 1984 & Prior IOPM*
3 DTHS 40-100 1985 to 11/86 IOPM*
4 DTH(S)-2 40-100 11/86 to 01/87 IOPM*
5 DTH(S)-2 40-100 01/87 to 04/92 IOPM*
6 DTH(S)-2 40-100 04/92 to 01/01 IOPM*
7 DTH(S)-2 125, 150 1988 to 1989 IOPM*
8 DTH(S)-3 125 1989 to 1994 IOPM*
9 DTH(S)-3 150 1990 to 1994 IOPM*
10 DBS All 01/94 to 09/01 IOPM*
11 DRV All 01/91 to 12/01 IOPM*
12 MP All 10/11 to Present IOPM
13 HL All 01/94 to 05/04/95 IOPM*
14 HL All 05/04/95 to 09/95 Contact Us
15 HL All 09/95 to 09/00 IOPM*
16 HL-2 All 09/00 to 08/02 IOPM*
17 HL-2 All 08/02 to 06/03 IOPM*
18 HL2 All 06/03 to 05/05 IOPM*
19 HL2 All 05/05 to 09/14 IOPM*
20 HL2 All 09/14 to Present IOPM
21 HL3 All 07/08 to 09/12 IOPM*
22 HL3 All 10/12 to 07/14 IOPM*
23 HL3 All 08/14 to Present IOPM
24 DX All 01/93 to 05/04/95 IOPM*
25 DX All 05/04/95 to 09/95 IOPM*
26 DX All 09/95 to 08/00 IOPM*
27 DX-2 All 09/00 to 05/03 IOPM*
28 DX2 All 06/03 to 08/14 IOPM*
29 DX2 All 09/14 to Present IOPM
30 DX3 All 07/08 to 09/12 IOPM*
31 DX3 All 10/12 to 07/14 IOPM*
32 DX3 All 08/14 to 12/16 IOPM*
33 DX3L All 06/15 to Present IOPM
34 XTS All 08/99 to 05/03 IOPM*
35 XTS All 06/03 to 04/05 IOPM*
36 XTS All 05/05 to 04/08 IOPM*
37 XTS3 All 07/07 to 07/12 IOPM*
38 DET All 06/03 to 04/05 IOPM*
39 DET All 05/05 to 06/07 IOPM*
40 DET3 All 08/06 to 06/09 IOPM*
41 DET3 All 07/09 to 09/12 IOPM*
42 DET3 All 10/12 to 08/14 IOPM*
43 DET3 All 08/14 to Present IOPM
44 DES All 05/00 to 06/03 IOPM*
45 DES All 06/03 to 04/05 IOPM*
46 DES All 05/05 to 06/07 IOPM*
47 DES3 All 05/06 to 06/09 IOPM*
48 DES3 All 07/09 to 9/12 IOPM*
49 DES3 All 10/12 to 08/14 IOPM*
50 DES3 All 08/14 to Present IOPM
51 LS All 06/00 to 12/12 IOPM*
52 LS All 12/12 to 2014 IOPM*
53 LS3 All 12/13 to 10/16 IOPM*
54 LS3 All 11/16 to Present IOPM
55 LD All 06/00 to 12/12 IOPM*
56 LD All 12/12 to 2014 IOPM*
57 LD3 All 12/13 to 10/16 IOPM*
58 LD3 All 11/16 to Present IOPM
59 SV All 06/00 to 04/05 IOPM*
60 SV All 05/05 to Present IOPM
61 HLV All 11/01 to 04/05 IOPM
62 HLV All 05/05 to Present IOPM
63 CL All 09/04 to 08/06 IOPM*
64 CL All 08/06 to 06/15 IOPM*
65 CX All 09/04 to 07/07 IOPM*
66 CX All 07/07 to 06/15 IOPM*
67 RVA All 01/94 to 05/04/95 IOPM*
68 RVA All 05/04/95 to 09/95 Contact Us
69 RVA All 09/95 to 09/00 IOPM*
70 RVA-2 All 10/00 to 06/03 IOPM*
71 RVA2 All 06/03 to 04/05 IOPM*
72 RVA2 All 05/05 to 09/14 IOPM*
73 RVA2 All 09/14 to Present IOPM
74 AG-1 All 01/01 to 06/03 IOPM*
75 AG1 All 06/03 to 04/05 IOPM*
76 AG1 All 05/05 to 09/14 IOPM*
77 AG1 All 09/14 to Present IOPM
78 AG-2 All 01/01 to 05/03 IOPM*
79 AG2 All 06/03 to 04/05 IOPM*
80 AG2 All 05/05 to 07/06 IOPM*
81 AG2 All 08/06 to 09/08 IOPM*
82 AG2 All 10/08 to 09/14 IOPM*
83 AG2 All 09/14 to Present IOPM
84 RH All 07/01 to 04/05 IOPM*
85 RH All 05/05 to Present IOPM
86 RHT All 05/05 to Present IOPM
87 DST All 03/16 to 05/17 IOPM*
88 DST All 06/17 to Present IOPM
  • Discontinued
    heaters
  • Discontinued version
    of current series
  • Current version
    of current series

*By selecting documentation link(s) above, you acknowledge that it links to an out-of-production installation, operation manual from the time of a particular heater manufacture. Refer to current production product manuals for up-to-date installation requirements.

Categories

International Heater Components Part List

Image Description Price
TP-208B
Gas Valve Mounting Bracket
$3.15
TP-303
Right End Panel, No Holes
$8.00
TP-304
Control Box Outer Shell
$39.00

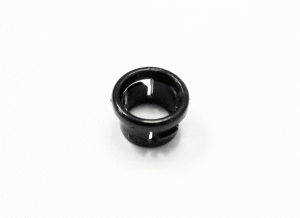

TP-332
Divider Grommet
N/A
TP-501
Divider Panel
N/A
TP-510
1/2" Flexible Gas Connector Attachment Fitting
$10.50
TP-602
Left End Panel
N/A
TP-610
BSP Gas Valve Pipe Nipple
N/A

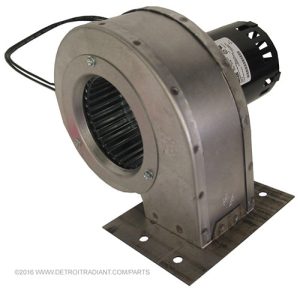

TP-615
220/240V, 50/60Hz Fan
N/A
TP-628A
Red Indicator Light
N/A
TP-628B
Green Indicator Light
N/A
TP-628C
Amber Indicator Light
N/A

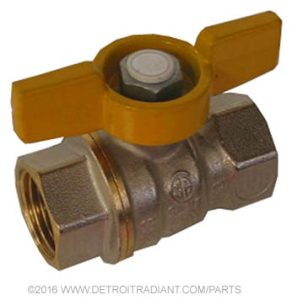

TP-633
1/2" BSP Ball Valve with Plugged Tapping
N/A
TP-635
4-Core Cable Wire
N/A
TP-635A
Valve Main Coil Cord
N/A
TP-638
Valve Main Coil Cord
N/A
TP-640B
Sit-Sig 843 Gas Valve
N/A
TP-646A
AC Rectifier Cord
N/A
TP-650
12kV High Temperature Lead with Rubber Boot
N/A
TP-651A
230V Pactrol Circuit Board
N/A
TP-651B
230V Pactrol Circuit Board
N/A

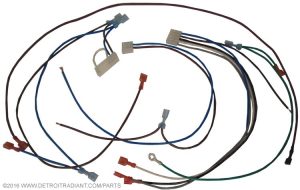

TP-652
Wiring Harness
N/A

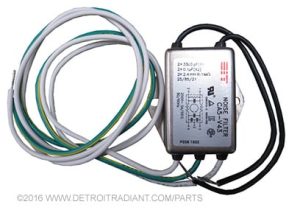

TP-656
Ignition Filter
N/A
TP-656A
Pactrol Ignition Filter
N/A
TP-656B
Pactrol Ignition Filter
N/A
TP-683
24" Stainless Steel Flex Connector
N/A
TP-702
Left End Panel
N/A
TP-735
3-Core Cable Wire
N/A
TP-740B
230V Gas Valve
N/A
Placeholder TP-745
Pilot Blanking Plug
N/A
Placeholder TP-3001A
Moulded Plastic Divider Panel
N/A
TP-3625
Picker Relay
N/A
Placeholder TP-3646
AC Rectifier Voltage Cord
N/A
Placeholder TP-3650
High Voltage Spark Wire
N/A
TP-3651
230V Circuit Board
N/A
TP-3651A
230V Circuit Board
N/A
TP-3652
Wiring Harness
N/A
TP-3652A
Wiring Harness
N/A
