Re-Verber-Ray High Intensity Heater Parts
Great Lakes Radiant high-intensity infrared space heaters are an ideal heating solution for areas with high air filtration or high ceilings, or where you need to spot heat. Our exclusive design has a proven history and includes a perforated ceramic emitter for maximum conversion to infrared radiation, plus a variety of BTU and control options
| Model | Version | Date Range | Control |
Voltage |
MBH | |
|---|---|---|---|---|---|---|
| 1 | NFS-2 | 01-05 | 01/05 – Present | Direct Spark | 25V | 30 , 45-60 , 75-100 , 130 , 160 |
| 2 | NFS-2 | N/A | 1984 – 01/05 | Direct Spark | 25V | 30 , 45-60 , 75-100 , 130 , 160 |
| 3 | NFS-2 | 03-97 | 03/97 – Present | Direct Spark | 120V | 30 , 45-60 , 75-100 , 130 , 160 |
| 4 | NFS-2 | N/A | 1985 – 05/97 | Direct Spark | 120V | 30 , 45-60 , 75-100 , 130 , 160 |
| 5 | PFS-2 | 01-05 | 01/05 – Present | Direct Spark | 25V | 30 , 45-60 , 75-100 , 130 , 160 |
| 6 | PFS-2 | N/A | 1984 – 01/05 | Direct Spark | 25V | 30 , 45-60 , 75-100 , 130 , 160 |
| 7 | PFS-2 | 03-97 | 03/97 – Present | Direct Spark | 120V | 30 , 45-60 , 75-100 , 130 , 160 |
| 8 | PFS-2 | N/A | 1985 – 05/97 | Direct Spark | 120V | 30 , 45-60 , 75-100 , 130 , 160 |
| 9 | NMV-2 | N/A | 1978 – Present | Millivolt | MV | 30 , 45-60 , 75-100 , 130 , 160 |
| 10 | PMV-2 | N/A | 1978 – Present | Millivolt | MV | 30 , 45-60 , 75-100 , 130 , 160 |
| 11 | NSPI-8 | N/A | 1979 – 1999 | Spark Pilot | 25V | 30 , 45-60 , 75-100 , 130 , 160 |
| 12 | NSPI-8 | N/A | 1979 – 1999 | Spark Pilot | 120V | 30 , 45-60 , 75-100 , 130 , 160 |
| 13 | NT-2 | N/A | 1978 – 1998 | Manual Ignition | 25V | 30 , 45-60 , 75-100 , 130 , 160 |
| 14 | NT-2 | N/A | 1978 – 1998 | Manual Ignition | 120V | 30 , 45-60 , 75-100 , 130 , 160 |
| 15 | PT-2 | N/A | 1978 – 1998 | Manual Ignition | 25V | 30 , 45-60 , 75-100 , 130 , 160 |
| 16 | PT-2 | N/A | 1978 – 1998 | Manual Ignition | 120V | 30 , 45-60 , 75-100 , 130 , 160 |
| 17 | NE-2 | N/A | 1976 – 1997 | Glow Coil | 25V | 30 , 45-60 , 75-100 , 130 , 160 |
| 18 | NE-2 | N/A | 1976 – 1997 | Glow Coil | 120V | 30 , 45-60 , 75-100 , 130 , 160 |
| 19 | NGCI-3 | N/A | 1988 – 1996 | Glow Coil | 25V | 30 , 45-60 , 75-100 , 130 , 160 |
| 20 | NGCI-3 | N/A | 1988 – 1996 | Glow Coil | 120V | 30 , 45-60 , 75-100 , 130 , 160 |
| 21 | NSP-4 | N/A | 1976 – 1993 | Spark Pilot | 25V | 30 , 45-60 , 75-100 , 130 , 160 |
| 22 | NSP-4 | N/A | 1976 – 1993 | Spark Pilot | 120V | 30 , 45-60 , 75-100 , 130 , 160 |
| 23 | NFS | N/A | 1976 – 1983 | Direct Spark | 120V | Coming Soon |
| 24 | PFS | N/A | 1976 – 1983 | Direct Spark | 120V | Coming Soon |
| 25 | All Other | N/A | – | Any | 25V | 30 , 45-60 , 75-100 , 130 , 160 |
| 26 | All Other | N/A | – | Any | 120V | 30 , 45-60 , 75-100 , 130 , 160 |
Combustion Components Part List
| Image | Description | Price |
|---|---|---|
 |
22-508 DSI Spark Electrode 2 Prong |
N/A |
 |
DR-FC Flexible Conduit |
$3.15 |
 |
DR-PP Pilot Plug |
$8.50 |
 |

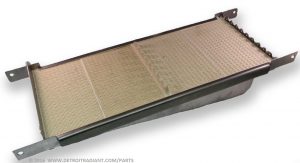

DR-RH Rayhead Assembled With Ceramics In Chamber. |
$132.00 |
 |
DR-RHP Rayhead For Use On All 30,000 - 50,000 Btu Propane Heaters Assembled With Ceramics In Chamber. RODS NOT INCLUDED. |
$132.00 |
 |
FC-24 24" Stainless Steel Flex Connector with Plated Steel Fittings |
$34.00 |
 |

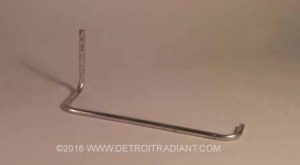

PL-1 Pilot Line (Straight) For DR30 |
$15.00 |
 |
PL-2 Pilot Line (Straight) For DR45 Through DR160 |
$15.00 |
 |

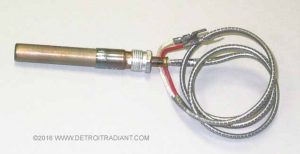

Q309A-1970 Pilot Flame Detector Thermocouple |
$18.00 |
 |
Q313A-1014 Pilot Flame Detector Powerpile |
$47.25 |
 |
RV 12-6 Natural Gas Pilot Regulator |
$35.00 |
 |
RV 12-11 Propane Gas Pilot Regulator |
$35.00 |
 |
Y75AA-2 Flame Detection Rod |
N/A |
 |
Y80HA-24 DISCONTINUED 24" Screw In Connector Glo-Coil |
N/A |
