Re-Verber-Ray Tube Heater Parts

Great Lakes Radiant Products Company offers the most extensive line of low-intensity infrared radiant tube heaters available. From our award-winning, engineered vacuum systems to our patented, two-stage line of heaters, you’ll find a product that ideally suits your needs. Re-Verber-Ray® low-intensity heaters are a little- to no-maintenance, cost-effective and energy-efficient solution for heating a wide variety of areas.



Series MBH

Version

Documentation
1 DTH 40-100 11/86 & Prior IOPM*
2 DTHS 40-100 1984 & Prior IOPM*
3 DTHS 40-100 1985 to 11/86 IOPM*
4 DTH(S)-2 40-100 11/86 to 01/87 IOPM*
5 DTH(S)-2 40-100 01/87 to 04/92 IOPM*
6 DTH(S)-2 40-100 04/92 to 01/01 IOPM*
7 DTH(S)-2 125, 150 1988 to 1989 IOPM*
8 DTH(S)-3 125 1989 to 1994 IOPM*
9 DTH(S)-3 150 1990 to 1994 IOPM*
10 DBS All 01/94 to 09/01 IOPM*
11 DRV All 01/91 to 12/01 IOPM*
12 MP All 10/11 to Present IOPM
13 HL All 01/94 to 05/04/95 IOPM*
14 HL All 05/04/95 to 09/95 Contact Us
15 HL All 09/95 to 09/00 IOPM*
16 HL-2 All 09/00 to 08/02 IOPM*
17 HL-2 All 08/02 to 06/03 IOPM*
18 HL2 All 06/03 to 05/05 IOPM*
19 HL2 All 05/05 to 09/14 IOPM*
20 HL2 All 09/14 to Present IOPM
21 HL3 All 07/08 to 09/12 IOPM*
22 HL3 All 10/12 to 07/14 IOPM*
23 HL3 All 08/14 to Present IOPM
24 DX All 01/93 to 05/04/95 IOPM*
25 DX All 05/04/95 to 09/95 IOPM*
26 DX All 09/95 to 08/00 IOPM*
27 DX-2 All 09/00 to 05/03 IOPM*
28 DX2 All 06/03 to 08/14 IOPM*
29 DX2 All 09/14 to Present IOPM
30 DX3 All 07/08 to 09/12 IOPM*
31 DX3 All 10/12 to 07/14 IOPM*
32 DX3 All 08/14 to 12/16 IOPM*
33 DX3L All 06/15 to Present IOPM
34 XTS All 08/99 to 05/03 IOPM*
35 XTS All 06/03 to 04/05 IOPM*
36 XTS All 05/05 to 04/08 IOPM*
37 XTS3 All 07/07 to 07/12 IOPM*
38 DET All 06/03 to 04/05 IOPM*
39 DET All 05/05 to 06/07 IOPM*
40 DET3 All 08/06 to 06/09 IOPM*
41 DET3 All 07/09 to 09/12 IOPM*
42 DET3 All 10/12 to 08/14 IOPM*
43 DET3 All 08/14 to Present IOPM
44 DES All 05/00 to 06/03 IOPM*
45 DES All 06/03 to 04/05 IOPM*
46 DES All 05/05 to 06/07 IOPM*
47 DES3 All 05/06 to 06/09 IOPM*
48 DES3 All 07/09 to 9/12 IOPM*
49 DES3 All 10/12 to 08/14 IOPM*
50 DES3 All 08/14 to Present IOPM
51 LS All 06/00 to 12/12 IOPM*
52 LS All 12/12 to 2014 IOPM*
53 LS3 All 12/13 to 10/16 IOPM*
54 LS3 All 11/16 to Present IOPM
55 LD All 06/00 to 12/12 IOPM*
56 LD All 12/12 to 2014 IOPM*
57 LD3 All 12/13 to 10/16 IOPM*
58 LD3 All 11/16 to Present IOPM
59 SV All 06/00 to 04/05 IOPM*
60 SV All 05/05 to Present IOPM
61 HLV All 11/01 to 04/05 IOPM
62 HLV All 05/05 to Present IOPM
63 CL All 09/04 to 08/06 IOPM*
64 CL All 08/06 to 06/15 IOPM*
65 CX All 09/04 to 07/07 IOPM*
66 CX All 07/07 to 06/15 IOPM*
67 RVA All 01/94 to 05/04/95 IOPM*
68 RVA All 05/04/95 to 09/95 Contact Us
69 RVA All 09/95 to 09/00 IOPM*
70 RVA-2 All 10/00 to 06/03 IOPM*
71 RVA2 All 06/03 to 04/05 IOPM*
72 RVA2 All 05/05 to 09/14 IOPM*
73 RVA2 All 09/14 to Present IOPM
74 AG-1 All 01/01 to 06/03 IOPM*
75 AG1 All 06/03 to 04/05 IOPM*
76 AG1 All 05/05 to 09/14 IOPM*
77 AG1 All 09/14 to Present IOPM
78 AG-2 All 01/01 to 05/03 IOPM*
79 AG2 All 06/03 to 04/05 IOPM*
80 AG2 All 05/05 to 07/06 IOPM*
81 AG2 All 08/06 to 09/08 IOPM*
82 AG2 All 10/08 to 09/14 IOPM*
83 AG2 All 09/14 to Present IOPM
84 RH All 07/01 to 04/05 IOPM*
85 RH All 05/05 to Present IOPM
86 RHT All 05/05 to Present IOPM
87 DST All 03/16 to 05/17 IOPM*
88 DST All 06/17 to Present IOPM
  • Discontinued
    heaters
  • Discontinued version
    of current series
  • Current version
    of current series

*By selecting documentation link(s) above, you acknowledge that it links to an out-of-production installation, operation manual from the time of a particular heater manufacture. Refer to current production product manuals for up-to-date installation requirements.

Categories

Electrical Components Part List

Image Description Price
4000-01V

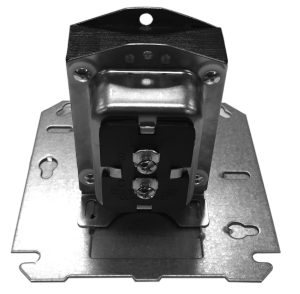

40 VA Transformer 120-25V.
N/A
ERK
External Relay Kit for standard environments
N/A
HLPNL-2
Relay Panel with Two Relay Boards
N/A
HLPNL-4
Relay Panel with Four Relay Boards
N/A
HLPNL-6
Relay Panel with Six Relay Boards
N/A
HLPNL-10
Relay Panel withTen Relay Boards
N/A
HLRB
Hi-Low Relay Board
$37.00
Placeholder HLV-PB8
50-275 BTU/H Vacuum Exhauster Package
N/A
Placeholder HLV-PB9
280-545 BTU/H Vacuum Exhauster Package
N/A
Placeholder HLV-PB10
550-750 BTU/H Vacuum Exhauster Package
N/A
PSP-722
Millivolt / 24V Programmable Thermostat
N/A
R8285B
Combination Relay Transformer
N/A
SWPD60
Paragon Timer
N/A
TP-10A
Plastic Conduit 4" X 3/4"
$1.50
TP-55B
RVA Small Style Fan
$152.00
TP-78B
Molex Connector With Wires
$26.00
TP-78C
Molex Wire Connectors
$26.00
TP-79
Natural Gas (6.0") Valve Only - VR4205M-1308
$160.00
TP-107P
VR4205M-1357 (1316) Propane Gas (10.0") Valve Only
$149.00
TP-214
Glo-Bar Wiring Harness
$22.00
TP-215
Wiring Harness - Direct
$29.50
TP-215A
Discontinued. Replace with TP-352, TP-351A and TP-390.
N/A
TP-222A
Flame Rod Wire
$8.70
TP-240
VR4205-M-1324 Natural Gas (3.5") Valve Train Assembly
$157.00
TP-241
LP Gas (10.0") Valve Train Assembly
$157.00
TP-328
120V Indicator Lights
$9.75
TP-329
1/4 Neutral Terminal Block
$4.75
TP-333
60" Black 120V Plug
$17.50
TP-334
60" Yellow 24V Control Wire
$10.75
TP-352
Long Wire Harness for Mark 17X-117
$25.50
TP-352A
Long Wire Harness for Mark 17DU-117
$25.50
TP-353
Ignition Module Wiring Harness
$46.00
TP-533
Conduit Connection
$6.75
TP-550
Spark Electrode Transfer Wire
$12.00
TP-552
Wiring Harness
$24.25
TP-825
24V Isolation Relay Board
$35.00
TP-826
40VA Transformer
$31.25
TP-827

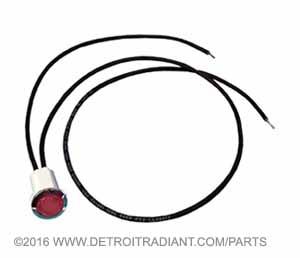

Red LED Diagnostic Light
$13.00
TP-827A
HL2-F Suffix Red LED Diagnostic Light
$12.00
TP-828
Yellow 24V Indicator Light
$8.50
TP-852
HL-2 Wire Harness Set
$27.00
TP-852A
HL2-F Wire Harness Set
$22.00
TP-933
60" Black 120V 3 Prong Plug
$14.00
TP-934
6 foot, 24V Yellow Control Wire
$14.00
TP-1033
Thermal Fuse
$20.00
TP-1229
Fuse Holder
$7.75
TP-1255
Exhauster Pump Assembly
$398.00
TP-1266
SV Power Box Assembly With Bracket
$127.00
TP-1297
Fuse
$2.10
TP-1325
24V Switching Relay Board
$24.50
TP-1428
24V Green Operational Indicator Light
$8.75
TP-1428A
28V GREEN LED IND. LIGHT
$8.75
TP-1516B
1/2 HP Baldor Motor for The PB-8 Series Vacuum Exhauster
$540.00
TP-1516C
3/4" HP Baldor Motor For The PB-9 Series Vacuum Exhauster
$585.00
TP-1516D
1 HP Baldor Motor For The PB-10 Series Vacuum Exhauster
$632.00
TP-1526A
Hammond 75VA Transformer With Foot Mounts
$80.00
TP-1526B
220/240V 75VA Transformer
N/A
TP-1527
24V Isolation Relay Board
$31.00
TP-1528
Exhauster Post Purge Relay
$55.00
TP-1566
HLV Exhauster Control Panel
$252.00
TP-3025
120VAC Coil Relay
N/A
TP-3029
Thermostat Terminal Board; Two-Stage
N/A
TP-3040
Series 3 Natural Gas (3.5") Valve Train Assembly
$159.00
TP-3041
Series 3 Propane Gas (10.0") Valve Train Assembly -1357(1316)
$159.00
TP-3052
Wiring Harness for TP-3051
$24.50
TP-3115
Inducer Motor Assembly
$117.50
TP-3129
Thermostat Terminal Board; Single-Stage
N/A
TP-3220
Thermostat Wire Grommet
N/A
TP-3234
N/A
TP-3235
Valve Coil Main Cord (24VRAC)
N/A
TP-3252
4-Piece Wiring Harness Set
$29.00
TP-3254
Wire Harness For Modulating Controller
$27.00
TP-6015
Fan Motor Assembly.
N/A
TP-6015A
Fan Motor Assembly
$158.00
TP-6052
2-Part Wire Set
$6.00
TP-6055
26" High Temp. Sense Wire w/ Boot (Orange)
$13.00
TP-6056
26" High Temp. Sense Wire (White)
$8.00
TP-6152
Two-Stage Wiring Harness
$24.00
TP-6225
Dual Throw, Dual Pole Isolation Relay
$26.00
TP-FSK1
Full Flame Sense Kit With Flame Rod
$212.00
TP-FSK2
Flame Sense / No Flame Rod Kit
$181.00
V-22
120V Indicator Light
$7.75
V-PAI
Powered Air Inlet
N/A
WCP-A
Control Package Designed for Wal-Mart Applications
N/A
WCP-B
Control Package Designed for Wal-Mart Applications
N/A
WCP-C
Control package designed for Walmart applications.
N/A
WEP-TS

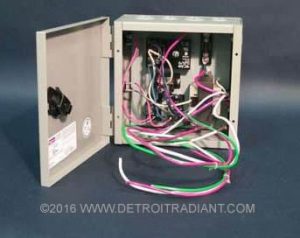

Weatherproof enclosure package with 4-hour timer and on-off control.
