Re-Verber-Ray Tube Heater Parts

Great Lakes Radiant Products Company offers the most extensive line of low-intensity infrared radiant tube heaters available. From our award-winning, engineered vacuum systems to our patented, two-stage line of heaters, you’ll find a product that ideally suits your needs. Re-Verber-Ray® low-intensity heaters are a little- to no-maintenance, cost-effective and energy-efficient solution for heating a wide variety of areas.



Series MBH

Version

Documentation
1 DTH 40-100 11/86 & Prior IOPM*
2 DTHS 40-100 1984 & Prior IOPM*
3 DTHS 40-100 1985 to 11/86 IOPM*
4 DTH(S)-2 40-100 11/86 to 01/87 IOPM*
5 DTH(S)-2 40-100 01/87 to 04/92 IOPM*
6 DTH(S)-2 40-100 04/92 to 01/01 IOPM*
7 DTH(S)-2 125, 150 1988 to 1989 IOPM*
8 DTH(S)-3 125 1989 to 1994 IOPM*
9 DTH(S)-3 150 1990 to 1994 IOPM*
10 DBS All 01/94 to 09/01 IOPM*
11 DRV All 01/91 to 12/01 IOPM*
12 MP All 10/11 to Present IOPM
13 HL All 01/94 to 05/04/95 IOPM*
14 HL All 05/04/95 to 09/95 Contact Us
15 HL All 09/95 to 09/00 IOPM*
16 HL-2 All 09/00 to 08/02 IOPM*
17 HL-2 All 08/02 to 06/03 IOPM*
18 HL2 All 06/03 to 05/05 IOPM*
19 HL2 All 05/05 to 09/14 IOPM*
20 HL2 All 09/14 to Present IOPM
21 HL3 All 07/08 to 09/12 IOPM*
22 HL3 All 10/12 to 07/14 IOPM*
23 HL3 All 08/14 to Present IOPM
24 DX All 01/93 to 05/04/95 IOPM*
25 DX All 05/04/95 to 09/95 IOPM*
26 DX All 09/95 to 08/00 IOPM*
27 DX-2 All 09/00 to 05/03 IOPM*
28 DX2 All 06/03 to 08/14 IOPM*
29 DX2 All 09/14 to Present IOPM
30 DX3 All 07/08 to 09/12 IOPM*
31 DX3 All 10/12 to 07/14 IOPM*
32 DX3 All 08/14 to 12/16 IOPM*
33 DX3L All 06/15 to Present IOPM
34 XTS All 08/99 to 05/03 IOPM*
35 XTS All 06/03 to 04/05 IOPM*
36 XTS All 05/05 to 04/08 IOPM*
37 XTS3 All 07/07 to 07/12 IOPM*
38 DET All 06/03 to 04/05 IOPM*
39 DET All 05/05 to 06/07 IOPM*
40 DET3 All 08/06 to 06/09 IOPM*
41 DET3 All 07/09 to 09/12 IOPM*
42 DET3 All 10/12 to 08/14 IOPM*
43 DET3 All 08/14 to Present IOPM
44 DES All 05/00 to 06/03 IOPM*
45 DES All 06/03 to 04/05 IOPM*
46 DES All 05/05 to 06/07 IOPM*
47 DES3 All 05/06 to 06/09 IOPM*
48 DES3 All 07/09 to 9/12 IOPM*
49 DES3 All 10/12 to 08/14 IOPM*
50 DES3 All 08/14 to Present IOPM
51 LS All 06/00 to 12/12 IOPM*
52 LS All 12/12 to 2014 IOPM*
53 LS3 All 12/13 to 10/16 IOPM*
54 LS3 All 11/16 to Present IOPM
55 LD All 06/00 to 12/12 IOPM*
56 LD All 12/12 to 2014 IOPM*
57 LD3 All 12/13 to 10/16 IOPM*
58 LD3 All 11/16 to Present IOPM
59 SV All 06/00 to 04/05 IOPM*
60 SV All 05/05 to Present IOPM
61 HLV All 11/01 to 04/05 IOPM
62 HLV All 05/05 to Present IOPM
63 CL All 09/04 to 08/06 IOPM*
64 CL All 08/06 to 06/15 IOPM*
65 CX All 09/04 to 07/07 IOPM*
66 CX All 07/07 to 06/15 IOPM*
67 RVA All 01/94 to 05/04/95 IOPM*
68 RVA All 05/04/95 to 09/95 Contact Us
69 RVA All 09/95 to 09/00 IOPM*
70 RVA-2 All 10/00 to 06/03 IOPM*
71 RVA2 All 06/03 to 04/05 IOPM*
72 RVA2 All 05/05 to 09/14 IOPM*
73 RVA2 All 09/14 to Present IOPM
74 AG-1 All 01/01 to 06/03 IOPM*
75 AG1 All 06/03 to 04/05 IOPM*
76 AG1 All 05/05 to 09/14 IOPM*
77 AG1 All 09/14 to Present IOPM
78 AG-2 All 01/01 to 05/03 IOPM*
79 AG2 All 06/03 to 04/05 IOPM*
80 AG2 All 05/05 to 07/06 IOPM*
81 AG2 All 08/06 to 09/08 IOPM*
82 AG2 All 10/08 to 09/14 IOPM*
83 AG2 All 09/14 to Present IOPM
84 RH All 07/01 to 04/05 IOPM*
85 RH All 05/05 to Present IOPM
86 RHT All 05/05 to Present IOPM
87 DST All 03/16 to 05/17 IOPM*
88 DST All 06/17 to Present IOPM
  • Discontinued
    heaters
  • Discontinued version
    of current series
  • Current version
    of current series

*By selecting documentation link(s) above, you acknowledge that it links to an out-of-production installation, operation manual from the time of a particular heater manufacture. Refer to current production product manuals for up-to-date installation requirements.

Categories

Discontinued Part List

Image Description Price
36E36A-210
Discontinued Combination Natural Gas Valve 120V Intermittent Spark
N/A
176-12
Discontinued White Rodgers Thermostat with Ventilation Interlock Function
N/A

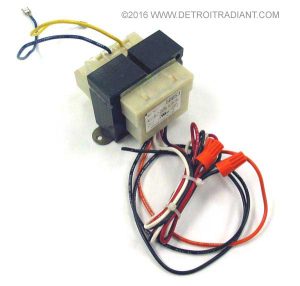

4000-08J
Discontinued 75 VA Transformer
N/A
DB-61B
Discontinued Replace With DB-264B Per Instructions
N/A
DB-215
DBS series fan, replace with TP-1015
N/A
DB-218
Discontinued Replace with TP-264D
N/A
DB-220
Discontinued Replace with TP-AK3
N/A
HL-201
Discontinued HL2 Smartstat Control
N/A
HL-251
Discontinued Smartstat Control with Night Setback
N/A
HLS81
Discontinued Waterproof Remote Sensor For HL-201 & 251
N/A
ML-72
Discontinued Grosslin 7-Day Universal Timer
N/A
RVA2-EKIT
Discontinued Replace with RVA2-EK
N/A
T8600D
Discontinued Honeywell Digital Thermostat
N/A
TCP
Discontinued Re-Verber-Ray Timer Control Package
N/A
TCP-B
Discontinued Re-Verber-Ray Timer Control Package
N/A
TH-1F81
Discontinued 24V Programmable Two Stage Thermostat.
N/A
TH-1F95
Discontinued Replace with TH-1F95-TS
N/A
TH-D152
Discontinued Replace with TH-PSD22
N/A
TP-8
Discontinued Replace with TP-8D
N/A
TP-8A
Discontinued Replace with TP-6A
N/A
TP-8B
Discontinued Replace with TP-8D
N/A
Placeholder TP-21A
Discontinued Old Style Torca Tube Clamp
N/A
Placeholder TP-32
N/A
Placeholder TP-32A
N/A
Placeholder TP-32B
N/A
TP-36
Discontinued Replace with TP-36NKIT / TP-36PKIT
N/A
Placeholder TP-36A
Discontinued Natural Gas Valve ** consult factory **
N/A
Placeholder TP-36B
Discontinued Natural Gas Valve ** consult factory **
N/A
Placeholder TP-36C
Discontinued Propane Gas Valve ** consult factory **
N/A
TP-46
Discontinued Replace with TP-204
N/A
TP-48
Discontinued Becket Main Burner
N/A
TP-55C
Discontinued 120V 50 Hz Fan Blower
N/A
TP-60
Discontinued Replace with TP-CPA-2 or TP-CPA-3
N/A
TP-60A
Discontinued Replace with TP-60C
N/A
TP-60B
Discontinued Replace with TP-60D
N/A
TP-60G
Discontinued Replace with TP-260G.
N/A
TP-61
Discontinued Replace with TP-CPA-2
N/A
TP-61A
Discontinued Replace With TP-264B.
N/A
TP-61B
Discontinued Replace With TP-264B.
N/A
TP-61C
Discontinued Replace with TP-264C.
N/A
TP-61D
Discontinued Replace with TP-264D.
N/A
TP-61E
Discontinued Replace With TP-264E.
N/A
TP-65H
Discontinued 16.5" X 4" Interlocking Half Baffle
N/A
TP-78A
Discontinued Replace with Mark 17DX-117 (direct sense) or Mark 17DU-117(remote sense).
N/A
TP-200
Discontinued Replace with TP-200A
N/A
TP-209
Discontinued Replace with TP-240
N/A
TP-209P
Discontinued Replace with TP-241
N/A
TP-210
Discontinued Replace with TP-840A
N/A
TP-210P
Discontinued Replace with TP-841
N/A
TP-269
Discontinued Replace with TP-217 (Brass Barb Fitting)
N/A
TP-340
Discontinued - Replace with TP-3040
N/A
TP-341
Discontinued - Replace with TP-3041
N/A
TP-383A
Discontinued Replace with TP-383
N/A
TP-383B
Discontinued Replace with TP-583
N/A
TP-383C
Discontinued Replace with TP-1283
N/A
Placeholder TP-562
Discontinued See TP-56C
N/A
TP-563
Discontinued Replace with TP-218
N/A
TP-604
Discontinued Replace with TP-304
N/A
TP-640A
Discontinued Sit-Sig 843 Gas Valve
N/A

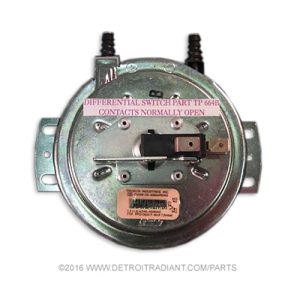

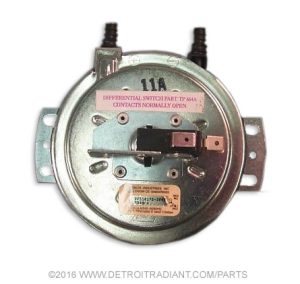

TP-664A
Discontinued: Replace with TP-664D.
N/A
TP-664B
Discontinued Replace with TP-664E.
N/A

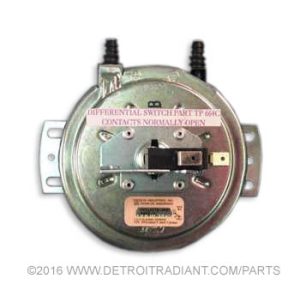

TP-664C
Discontinued Replace with TP-664F.
N/A
TP-740A
Discontinued Replace with TP-740B.
N/A
TP-840
Discontinued Replace With TP-840A.
N/A
TP-841
Discontinued Replace With TP-841A.
N/A
TP-851A
Discontinued Replace with TP-851B
N/A
TP-1060C
Discontinued replace with TP-1060F
N/A

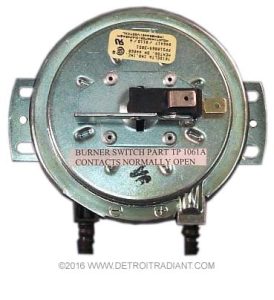

TP-1061A
Discontinued Replace With TP-264F.
N/A
TP-1061B
Discontinued Replace with TP-264F
N/A
TP-1064B
Discontinued Replace With TP-264F.
N/A
TP-1240
Discontinued Replace with TP-1240A
N/A
TP-1241
Discontinued Replace with TP-1241A
N/A

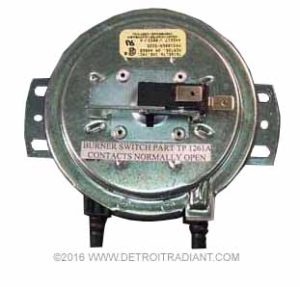

TP-1261A
Discontinued Replace With TP-1264A.
N/A
TP-1526
Discontinued Replace with TP-1526A
N/A
TP-1530
Discontinued Fuse Holder
N/A
TP-1540
Discontinued 24V Two Stage Gas Valve Assembly - Natural Gas
N/A
TP-1541
Discontinued Replace with TP-1541A
N/A
TP-3080A
Discontinued Replace with TP-3380
N/A
TP-3080B
Discontinued . Replace with TP-3580
N/A
TP-3097
Discontinued Series 3 Valve Compartment Top Panel
N/A
Placeholder TP-6002
Discontinued Burner Box Left Side Panel
N/A
Placeholder TP-6008
Discontinued Burner Box Rear Panel, Lower
N/A
V-64
Discontinued
N/A
Placeholder XL-411
Discontinued Single Stage Programmable Thermostat
N/A
