Reflector mounting bracket that allows for mounting the reflector on specified angles. Attaches to TP-19B wire hanger. Preset bends allow for a 15, 30 or 45 degree mounting angle. BK attaches to standard hangers.

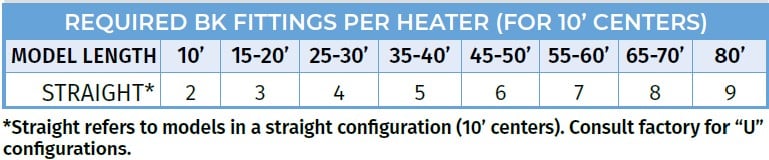

REQUIRED BK FITTINGS PER HEATER (FOR 10′ CENTERS)

IN STRAIGHT CONFIGURATION*

10 ft. — 2

15–20 ft. — 3

25–30 ft. — 4

35–40 ft. — 5

45–50 ft. — 6

55–60 ft. — 7

65–70 ft. — 8

80 ft. — 9

* Straight refers to models in a straight configuration (10′ centers).

  Consult factory for “U” configurations.
